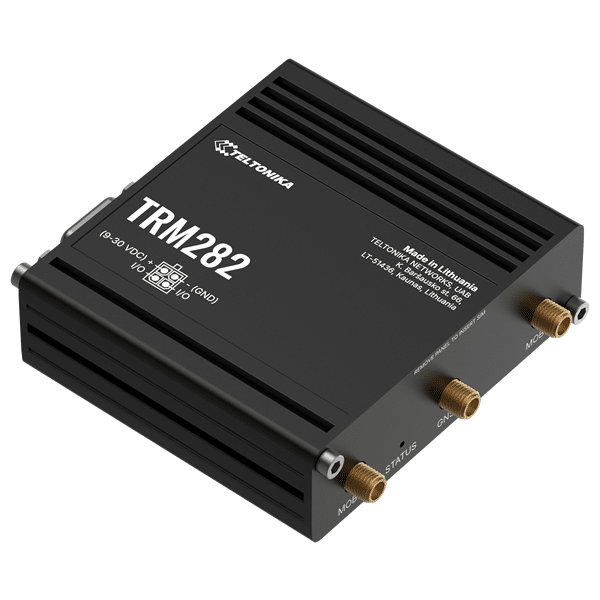

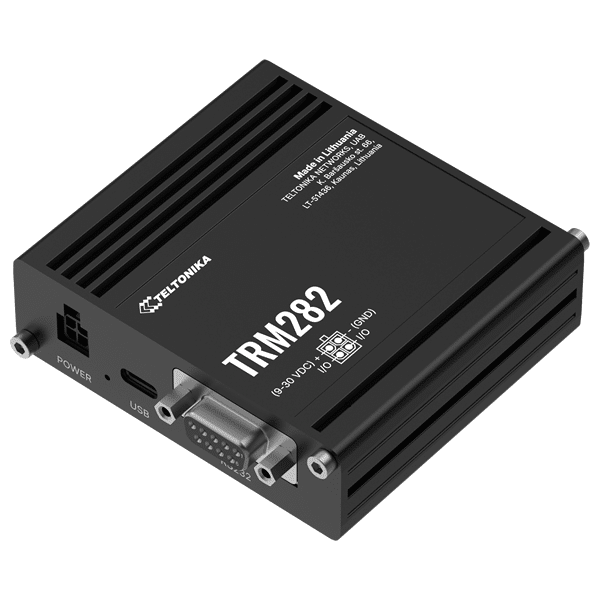

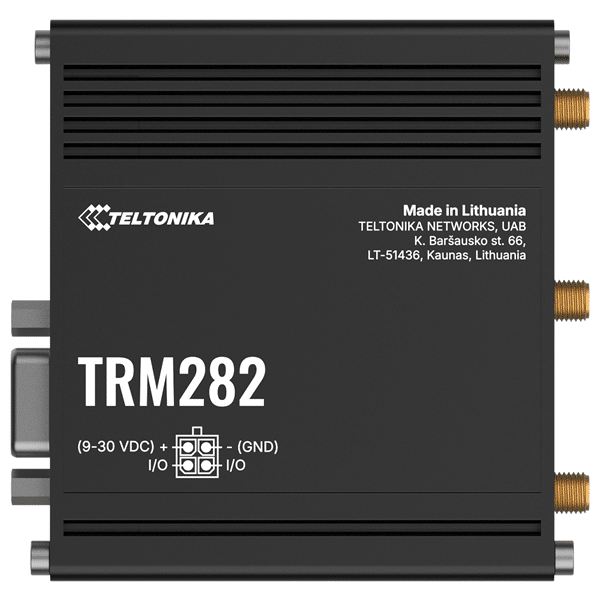

Teltonika TRM282 Global 4G LTE Cat 4 Industrial Modem

Teltonika TRM282 – Global 4G LTE Cat 4 Industrial Modem

The Teltonika TRM282 is a 4G LTE Cat 4 industrial modem for global IoT and M2M deployments, built around a Telit cellular module. Its dual interface design – USB for modern host devices and RS232 for legacy serial equipment – means it connects to new and old hardware without requiring system redesign. Integrated GNSS and digital I/O extend its role beyond basic data transport, making it suitable for location-aware and event-triggered applications.

The TRM282 is DIN rail mountable, operates across -40 to +65 degrees C, and accepts a 9-30 VDC supply. CE and UK certified under the RED Directive, it is compatible with Teltonika RMS for remote configuration and monitoring across large deployments.

Key Features

• Global 4G LTE Cat 4 via Telit cellular module – CE-certified bands B1, B3, B7, B8, B20, B28; 3G WCDMA (B1, B8) and 2G GSM fallback
• USB interface for host data connection – Windows and Linux compatible, AT command access

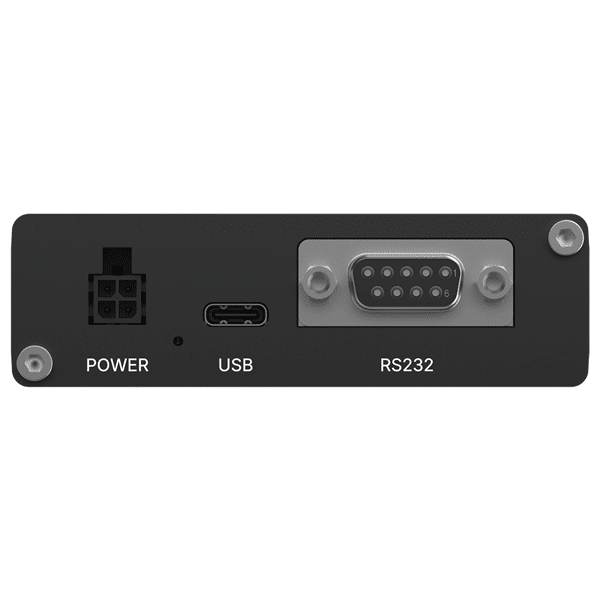

• RS232 serial interface (DB9 connector) for legacy industrial device integration without system redesign
• Integrated GNSS receiver for location tracking and asset positioning
• Digital input and digital output via 4-pin power connector for event monitoring and control

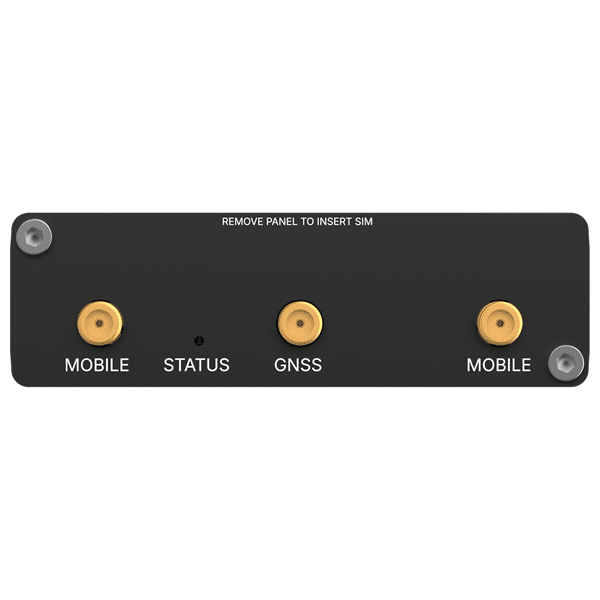

• 2 x SMA connectors for external mobile antennas; 1 x SMA for GNSS antenna
• Wide voltage input 9-30 VDC, reverse polarity protection, 4-pin power socket
• DIN rail mountable metal enclosure – 83 x 25 x 85.8 mm, 171 g
• Operating temperature -40 to +65 degrees C, humidity 10-90% non-condensing
• CE and UK certified (RED Directive 2014/53/EU); Teltonika RMS compatible

What the TRM282 Is Used For

Legacy Serial Equipment Modernisation

Many industrial sites run RS232-based PLCs, controllers, and monitoring equipment that pre-date IP networking. The TRM282 connects to these devices via its DB9 RS232 port, backhauling data over 4G LTE without requiring firmware changes or hardware replacement. This makes it a cost-effective path to cellular connectivity for existing assets in utilities, building management, and manufacturing.

Asset Tracking and Fleet Management

The TRM282 combines 4G LTE connectivity with an integrated GNSS receiver, providing both data backhaul and location reporting from a single device. This suits fleet tracking units, mobile equipment monitoring, and field service tools where both real-time data and position are required. Digital I/O allows connection to door sensors, ignition lines, or alarm triggers.

Remote Meter Reading and Utility Telemetry

Gas, water, and electricity meters with RS232 outputs can use the TRM282 to transmit readings to head-end systems over cellular. The modem connects the meter’s serial port directly to a host device or SBC running the collection software. The wide operating temperature range suits outdoor cabinet and kiosk installations without additional thermal management.

Industrial Automation and SCADA Data Backhaul

SCADA systems and industrial automation platforms often poll field equipment over serial lines. The TRM282 provides the cellular backhaul link for these systems, connecting a remote RTU or control unit to a central SCADA platform. The digital input can trigger alerts or data pushes on equipment state changes.

Field Service Terminal Connectivity

Handheld terminals, portable payment devices, and field laptops that require cellular connectivity can use the TRM282 via USB. The modem presents a standard network interface to the host OS, requiring only driver installation. Windows and Linux are both supported.

Environmental and Infrastructure Monitoring

Remote weather stations, flood sensors, and infrastructure monitoring units that log data locally can use the TRM282 to push readings to cloud platforms or notify operations teams. The DIN rail form factor suits panel or enclosure mounting in roadside cabinets, pump stations, and remote substations. The GNSS receiver adds precise time synchronisation and position tagging to logged data.

Frequently Asked Questions

What is the difference between the TRM282 and a cellular router?

A modem like the TRM282 provides cellular connectivity for a single host device over USB or RS232. It does not route traffic between multiple devices, provide a Wi-Fi network, or manage a local subnet. A cellular router such as the Teltonika RUT or RUTX series manages network traffic across multiple connected devices and includes features such as dual SIM failover, VPN, firewall, and Ethernet switching. The TRM282 is the right choice when you need to add 4G connectivity to a single device or an existing system with its own network management. For a broader explanation of the differences between modems, gateways, and routers in IoT deployments, see our explainer guide.

What operating systems does the TRM282 work with?

The TRM282 works with Windows and Linux. On Windows, connection is established through the cellular network settings after installing the required drivers (available from the Teltonika wiki). On Linux, the device is detected as a USB serial device and configured via NetworkManager or command-line tools. Both USB and RS232 access support AT commands for low-level configuration.

Does the TRM282 support Teltonika RMS?

Yes. The TRM282 is compatible with Teltonika RMS (Remote Management System), allowing remote monitoring, configuration, and diagnostics across fleets of deployed modems. RMS access requires an active RMS subscription. As a UK Teltonika Diamond Partner, routerstore.com can advise on RMS credits and licensing for your deployment.

What SIM card does the TRM282 use?

SIM card type and slot details are listed in the TRM282 datasheet – please refer to the Specification tab or contact us to confirm before ordering. For UK deployments, we supply fixed IP IoT SIMs and roaming M2M SIMs compatible with the TRM282 from our SIM connectivity range. A fixed IP SIM is the right choice for remote access and VPN applications. A roaming SIM suits deployments that move between coverage areas or require multi-network resilience.

Can the TRM282 report its GPS position?

Yes. The TRM282 includes an integrated GNSS receiver accessible via AT commands over USB or RS232. Position data can be read by the connected host application and forwarded to a tracking platform or cloud service. A separate SMA GNSS antenna connector is provided on the housing; the bundled mobile antenna does not cover GNSS frequencies. Full details of GNSS constellation support and sentence formats are in the TRM282 datasheet and wiki.

Is the TRM282 suitable for outdoor installations?

The TRM282 operates from -40 to +65 degrees C, which covers most UK panel and cabinet environments. It is DIN rail mountable and designed for industrial enclosure use. It is not independently weatherproof – it requires installation inside a rated enclosure for outdoor applications. Check the TRM282 datasheet for IP rating confirmation before planning an unenclosed outdoor deployment.

Related Products and Further Reading

The TRM282 pairs with a compatible IoT SIM card from our SIM connectivity range. For deployments requiring a fixed IP address for remote access or VPN use, see our fixed IP SIM cards. If your deployment needs traffic routing, dual SIM failover, or a local Wi-Fi network as well as cellular backhaul, explore our range of Teltonika 4G routers. For protocol bridging between industrial serial equipment and IP networks, see our Teltonika IoT gateways. For a detailed explanation of when to use a modem, gateway, or router in an IoT deployment, read our Routers, Gateways and Modems explainer.
