Milesight 4G Routers
Milesight 4G Routers
Showing all 7 results
- IoT 4G Gateway, Milesight, Milesight 4G Routers
Milesight UR41 4G Cat 4 Mini Industrial Router with GPS
IoT 4G Gateway, Milesight, Milesight 4G RoutersMilesight UR41 4G Cat 4 Mini Industrial Router with GPS
The Milesight UR41 (UR41-L08EU) is a compact 4G LTE Cat 4 industrial router built for embedded IoT deployments where space, power budget, and serial device connectivity all matter. At 70 x 55 x 22 mm and 103 g, it combines RS232/RS485, digital I/O, GPS/GNSS, and a hardware watchdog in a metal IP30 enclosure rated to -40 to +60 °C.
Key Features:
• 4G LTE Cat 4 – up to 150 Mbps down / 50 Mbps up, with 3G/2G fallback
• GPS/GNSS – GPS, GLONASS, BeiDou, Galileo, QZSS, 2.5 m CEP accuracy
• RS232 or RS485 (software switchable) – Modbus RTU/TCP, transparent serial, DLMS client
• 1 x digital input + 1 x digital output, galvanically isolated, 3.5 mm terminal block
• Dual power input: 5-24 V DC terminal block or 5 V USB Type-C
• Power-saving standby and idle modes – 6.3 mA standby at 12 V
• Hardware watchdog for automatic recovery from cellular or system failures
• VPN support: IPsec, OpenVPN, WireGuard, GRE, L2TP, PPTP, DMVPN, ZeroTier
• Remote management via Milesight Development Platform and MilesightVPN
• Desk, wall, and DIN rail mounting – 70 x 55 x 22 mm, 103 gSKU: UR41-L08EU - Milesight, Milesight 4G Routers
Milesight UR41L 4G Cat 1 Mini Industrial Router
The Milesight UR41L (UR41L-L0CEU) is a compact 4G LTE Cat 1 industrial router built for cost-sensitive M2M and IoT deployments where low power consumption and serial device connectivity matter more than peak throughput. At 70 x 55 x 22 mm and 103 g, it combines RS232/RS485, galvanically isolated digital I/O, and a hardware watchdog in a metal IP30 enclosure rated to -40 to +60 °C.
Key Features:
• 4G LTE Cat 1 connectivity for low-throughput M2M and IoT applications
• RS232 or RS485 (software switchable) – Modbus RTU/TCP, transparent serial, DLMS client
• 1 x digital input + 1 x digital output, galvanically isolated, 3.5 mm terminal block
• Dual power input: 5-24 V DC terminal block or 5 V USB Type-C
• Ultra-low standby power: 6.3 mA at 12 V – suitable for battery and solar-powered installs
• Hardware watchdog for automatic recovery from cellular or system failures
• VPN support: IPsec, OpenVPN, WireGuard, GRE, L2TP, PPTP, DMVPN, ZeroTier
• Remote management via Milesight DeviceHub and MilesightVPN
• Scheduled wake, SMS wake, and DI wake for power-managed deployments
• Desk, wall, and DIN rail mounting – 70 x 55 x 22 mm, 103 gSKU: UR41L-L0CEU - 4G Routers, Milesight, Milesight 4G Routers
Milesight UR32L-L0GEU 4G Router with 2 x Ethernet
The Milesight UR32L (UR32L-L0GEU) is a compact industrial 4G LTE Cat 4 router built for M2M and remote monitoring deployments where reliable cellular WAN and Ethernet connectivity are the only requirements. It carries a full VPN stack including WireGuard and OpenVPN, supports remote fleet management via the Milesight Development Platform, and draws just 1.8 W in normal operation.
Key Features:
• 4G LTE Cat 4 – 150 Mbps down / 50 Mbps up, with 3G/2G fallback
• Single Mini SIM (2FF), 1.8 V / 3 V
• 2x RJ45 10/100 Mbps Ethernet – 1x WAN + 1x LAN, configurable as 2x LAN
• Automatic WAN failover from Ethernet to cellular on link loss
• VPN – OpenVPN, IPsec, WireGuard, ZeroTier, GRE, L2TP (client), PPTP (client), DMVPN (spoke)
• Remote management via DeviceHub and Milesight Development Platform
• SNMP v1/v2c/v3, TR-069, SMS management and on-demand dial-up
• Hardware watchdog with automatic recovery
• Typical 1.8 W power consumption, 9-48 V DC input
• Operating temperature -40 to +70°C, IP30, DIN rail and wall mount, 3-year warrantySKU: UR32L-L0GEU - 4G CCTV, 4G Routers, Milesight, Milesight 4G Routers
Milesight UR32L-L0GEU-P 4G Router with PoE
The Milesight UR32L Lite with POE (UR32L-L0GEU-P) is a compact industrial 4G LTE Cat 4 router with 802.3af/at PoE PSE output on both LAN ports, combining cellular WAN and the ability to power IP cameras or other PoE devices directly from a single unit. It carries a full VPN stack, supports remote fleet management via the Milesight Development Platform, and draws 1.8 W in normal operation – rising when PoE devices are connected.
Key Features:
• 4G LTE Cat 4 – 150 Mbps down / 50 Mbps up, with 3G/2G fallback
• Single Mini SIM (2FF), 1.8 V / 3 V
• 2x RJ45 10/100 Mbps Ethernet – 1x WAN + 1x LAN, configurable as 2x LAN
• 802.3af/at PoE PSE on both LAN ports – up to 30 W per port, 60 W total (48 V DC input required)
• Automatic WAN failover from Ethernet to cellular on link loss
• VPN – OpenVPN, IPsec, WireGuard, ZeroTier, GRE, L2TP (client), PPTP (client), DMVPN (spoke)
• Remote management via DeviceHub and Milesight Development Platform
• SNMP v1/v2c/v3, TR-069, SMS management and on-demand dial-up
• Hardware watchdog with automatic recovery
• Operating temperature -40 to +70°C, IP30, DIN rail and wall mount, 3-year warrantySKU: UR32L-L0GEU-P - 4G Routers, Milesight, Milesight 4G Routers
Milesight UR32 Pro Series 4G Router with Serial (RS232/RS485), WiFi, 2 x Ethernet, DIO (UR32-L0GEU-W-485)
4G Routers, Milesight, Milesight 4G RoutersMilesight UR32 Pro Series 4G Router with Serial (RS232/RS485), WiFi, 2 x Ethernet, DIO (UR32-L0GEU-W-485)
The Milesight UR32-L0GEU-W-485 is a compact industrial 4G LTE Cat 4 router with dual SIM failover, 2.4 GHz Wi-Fi, and RS485 serial connectivity for direct integration with Modbus instruments and industrial equipment. It runs from 9 to 48 V DC, mounts on a DIN rail or wall, and operates from -40 to +70°C.
Key Features:
• 4G LTE Cat 4 – 150 Mbps down / 50 Mbps up, with automatic 3G/2G fallback
• Dual Mini SIM (2FF) with automatic carrier failover
• 2x RJ45 10/100 Mbps Ethernet – 1x WAN + 1x LAN, configurable as 2x LAN
• 802.11b/g/n Wi-Fi 2.4 GHz – AP and client modes, up to 15 simultaneous connections
• RS232/RS485 serial port (software selectable) – Modbus RTU/TCP gateway, transparent TCP, UDP, MQTT, and DLMS modes
• 1x digital input + 1x digital output, galvanic isolation, SMS and MQTT triggers
• MicroSD slot for local data logging and extended storage
• VPN – OpenVPN, IPsec, WireGuard, ZeroTier, GRE, L2TP, PPTP, DMVPN
• Python SDK for custom edge application development
• Operating temperature -40 to +70°C, IP30, DIN rail and wall mountSKU: UR32-L0GEU-W-485 - 4G CCTV, Milesight, Milesight 4G Routers

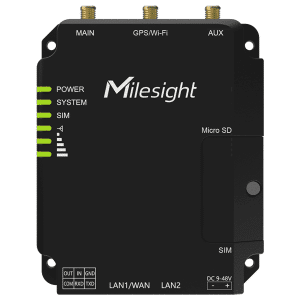

Milesight UR32 Pro Series 4G Router with POE In/Out, Serial (RS232/RS485), WiFi, 2 x Ethernet, DIO (UR32-L0GEU-P-W-485)
4G CCTV, Milesight, Milesight 4G RoutersMilesight UR32 Pro Series 4G Router with POE In/Out, Serial (RS232/RS485), WiFi, 2 x Ethernet, DIO (UR32-L0GEU-P-W-485)
The Milesight UR32-L0GEU-P-W-485 is a compact industrial 4G LTE Cat 4 router with dual SIM, built-in 802.3af/at PoE PSE output, 2.4 GHz Wi-Fi, and RS485 serial connectivity for industrial equipment integration. It delivers 4G cellular backhaul and can power IP cameras or other PoE devices directly from the same unit, removing the need for a separate injector on remote installations.
Key Features:
• 4G LTE Cat 4 – 150 Mbps down / 50 Mbps up, with 3G/2G fallback
• Dual Mini SIM (2FF) with automatic carrier failover
• 802.3af/at PoE PSE on both LAN ports – up to 30 W per port, 60 W total (48 V DC input required)
• 802.11b/g/n Wi-Fi 2.4 GHz – AP and client modes, up to 15 simultaneous connections
• RS485 serial port with Modbus RTU/TCP gateway and transparent TCP/MQTT modes
• 1x digital input + 1x digital output, galvanic isolation
• MicroSD slot for local data logging and extended storage
• VPN support – OpenVPN, IPsec, WireGuard, ZeroTier, GRE, L2TP, PPTP, DMVPN
• Python SDK for custom application and edge logic development
• Operating temperature -40 to +70°C, DIN rail and wall mount, 9-48 V DC inputSKU: UR32-L0GEU-P-W-485 - Milesight, Milesight 4G Routers
Milesight UR35-L0GEU-P-W Industrial 4G Router with Wi-Fi and PoE
Milesight UR35 Industrial 4G Dual SIM Router with Wi-Fi and PoE (UR35-L0GEU-P-W)
The Milesight UR35-L0GEU-P-W is a rugged industrial 4G LTE Cat 4 router with dual SIM failover, 802.11b/g/n Wi-Fi, and four 802.3af/at PoE output ports for powering connected devices directly from the router. Built on an ARM Cortex-A7 processor with a hardened IP30 metal enclosure, it operates from -40 to +70 °C and supports RS232, RS485, digital I/O, Modbus, DLMS/COSEM, MQTT, and a full VPN suite including WireGuard, OpenVPN, and IPsec.
Key Features:
• 4G LTE Cat 4 with dual Mini SIM (2FF) slots and automatic SIM failover
• 4 x 802.3af/at PoE PSE LAN ports — up to 30 W per port, 60 W total
• 802.11b/g/n Wi-Fi (2.4 GHz) in AP or client mode, up to 15 simultaneous connections
• 5 x Fast Ethernet ports (1 x WAN, 4 x LAN); WAN port configurable as LAN
• RS232 + RS485 serial ports with Modbus RTU/TCP gateway, DLMS/COSEM client
• 1 x digital input and 1 x digital output with galvanic isolation on 3.5 mm terminal block
• VPN support: WireGuard, OpenVPN, IPsec, GRE, L2TP, PPTP, DMVPN, ZeroTier
• Hardware watchdog, VRRP, dual SIM backup, and ping-based failover
• Python SDK embedded for secondary development and custom application logic
• 9-48 V DC input (48 V required for PoE output); -40 to +70 °C operating rangeSKU: UR35-L0GEU-P-W
