Semtech / Sierra Wireless 2000522 DC Power and I/O Cable

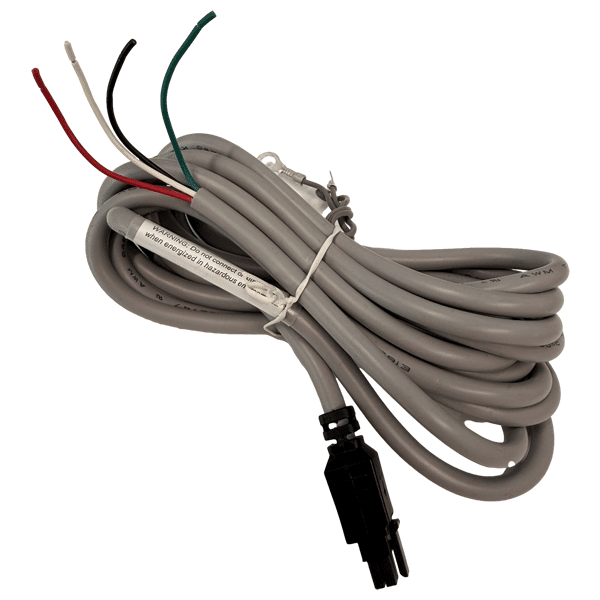

Semtech 2000522 DC power and I/O cable

The Semtech 2000522 is the standard DC power and I/O cable for Sierra Wireless AirLink cellular gateways and routers. It terminates a keyed 4-pin Molex connector at the router end and bare stripped leads at the supply end, so you can wire it straight to a fused DC feed, a screw terminal block or a vehicle supply. Sierra Wireless is now part of Semtech, so this same part ships under both names. One cable covers the full AirLink line, from the older GX and ES gateways through to the current RV and LX ranges.

Key features

• Genuine part: Semtech (Sierra Wireless) AirLink DC power and I/O cable, part number 2000522.
• 4-pin Molex connector: keyed 2×2 Molex housing at the router end, rated 250 V, 5 A.
• Bare flying leads: stripped conductor ends for wiring to a terminal block, fused DC feed or vehicle supply.
• Power and I/O in one: the connector carries the DC supply and the gateway digital I/O lines together.
• Colour-coded conductors: red for DC positive, black for ground, white and green for I/O.
• 10 ft cable run: 3048 mm of UL2464 20 AWG 4-core cable.
• Wide compatibility: fits AirLink GX, ES, LS, RV, MP70 and LX gateways, both current and end-of-life.
• Replacement ready: direct swap for a lost or damaged original AirLink power cord.

Compatible AirLink gateways and routers

The 2000522 is the DC power cable used across the Sierra Wireless AirLink range. If your gateway is listed below, this is the correct power and I/O cable. Because Sierra Wireless became part of Semtech, you will also see this part listed as a Semtech accessory, an AirLink power cord, or a Sierra Wireless DC power and I/O cable.

AirLink RV series (RV50, RV50X, RV55)

Ruggedised LTE and LTE-Advanced routers for vehicle and fixed deployments. The 2000522 provides both the DC power and the I/O wiring these units use in mobile installs, including ignition sense on the RV series. Confirm the white and green lead functions against the router hardware guide.

AirLink MP series (MP70)

High-performance in-vehicle router for fleet, transit and public safety. The MP70 uses the 2000522 for hardwired DC power and its digital I/O, as documented in the AirLink MP70 hardware user guide.

AirLink LX series (LX40, LX60)

Compact LTE routers for enterprise edge and IoT. The 2000522 is the hardwire DC option where a plug-in mains adapter is not practical, such as ceiling mounts, cabinets and remote enclosures.

AirLink GX and ES series (GX400, GX440, GX450, ES440, ES450)

Earlier-generation ALEOS gateways. These models are now end of life but remain in service across vehicle fleets and fixed sites. A replacement 2000522 keeps a working GX or ES gateway running when the original cable is lost or damaged.

AirLink LS series (LS300)

Compact ALEOS gateway for M2M and fixed IoT. It uses the same 4-pin Molex DC power and I/O connector as the rest of the AirLink line.

Some suppliers also list the AirLink FX30 and FX305 against part 2000522. Check the connector against the FX-series hardware guide before ordering for those units.

Wiring the 2000522: pinout and cautions

The router end is a keyed 4-pin Molex connector, so it only seats one way. The bare-lead end is colour coded: red is DC positive and black is ground. The white and green leads carry the gateway digital I/O, and on the RV and MP routers these typically provide ignition sense and a digital I/O line. Check the exact function of the white and green leads against your specific gateway hardware guide, as the I/O mapping differs across the AirLink range. Do not connect the I/O leads to the DC supply. When hardwiring to a vehicle or a fused feed, fit the fuse on the red lead close to the source.

Frequently asked questions

Is the Semtech 2000522 the same as the Sierra Wireless power cable?

Yes. Sierra Wireless is now part of Semtech, so the AirLink 2000522 DC power and I/O cable is sold under both brand names. The part number, connector and pinout are identical.

Which AirLink routers does the 2000522 fit?

It fits the AirLink GX400, GX440, GX450, ES440, ES450, LS300, RV50, RV50X, RV55, MP70, LX40 and LX60. It is the standard DC power and I/O cable across the ALEOS AirLink line.

What is the pinout of the 2000522 cable?

The 4-pin Molex connector uses red for DC positive, black for ground, and white and green for digital I/O. The exact I/O function depends on the gateway, so check your model hardware guide before wiring the white and green leads.

How long is the cable?

The cable is 3048 mm, or 10 ft, of UL2464 20 AWG 4-core wire with bare stripped ends.

Can I use this instead of the mains adapter?

Yes. The 2000522 is the hardwire DC option for installations without a mains socket, such as cabinets, vehicles and remote enclosures. For a plug-in mains supply, use the AirLink AC power adapter instead.

Do you stock a current-generation alternative to my AirLink gateway?

The 2000522 is stocked as a replacement accessory. If you are replacing an end-of-life AirLink gateway, our team can advise on a current-generation industrial cellular router. Contact our UK-based technical support to talk it through.
