Fullband 4G Antennas
Combo LTE / GPS Outdoor Antenna For Victron Energy GX LTE 4G Modem
Outdoor combination antenna providing 1 × LTE and 1 × GPS connection for the Victron GX LTE modem and other compatible cellular equipment. Supplied with a stand-off wall bracket, two 3-metre LBC100 cables and SMA male connectors. IP67-rated for exposed outdoor installations.
- 5dBi Peak Gain
- 1 x LTE Antenna
- 1 x GPS Antenna
- 2 x 3m Long Low Loss Cables
- SMA Connectors
- Weatherproof IP67
£68.00 Excl VAT

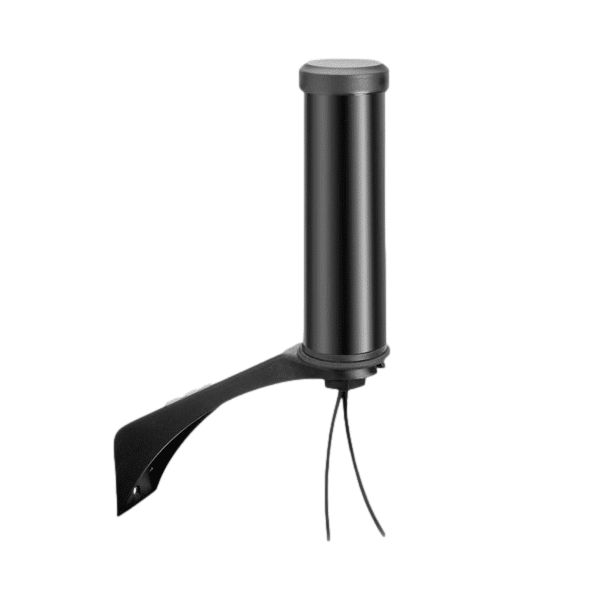

FB-COMBO-LGX-3M Outdoor LTE and GPS Combination Antenna
The FB-COMBO-LGX-3M is a wall-mounted outdoor combination antenna providing one LTE connection and one GPS connection through a single, robust antenna housing.
Designed for the Victron GX LTE modem, it is also suitable for other cellular routers, modems, gateways and monitoring devices equipped with 1 × LTE and 1 × GPS antenna port.
The antenna is supplied with a stand-off wall bracket, allowing it to be installed away from cabinets, walls and other surfaces that could obstruct or weaken the signal. This makes it particularly useful when the connected equipment is installed indoors, inside a metal enclosure, plant room, vehicle or other location with poor cellular or GPS reception.
Two permanently attached 3-metre LBC100 cables provide separate connections for LTE and GPS. Both cables are terminated with SMA male connectors for connection to compatible equipment.
Its IP67-rated enclosure and operating temperature range of −40°C to +85°C make the FB-COMBO-LGX-3M suitable for demanding outdoor, industrial, marine, vehicle and off-grid installations.
Key Features
- Combined LTE and GPS antenna
- Designed for the Victron GX LTE modem
- Compatible with other devices requiring 1 × LTE and 1 × GPS antenna
- One cellular antenna element
- One GPS/GNSS antenna element
- Two permanently attached 3-metre LBC100 cables
- SMA male connector fitted to each cable
- Stand-off wall-mounting bracket included
- Up to 5 dBi gain
- Vertical polarisation
- 50-ohm impedance
- IP67-rated weather-resistant housing
- Operating temperature from −40°C to +85°C
- Suitable for indoor equipment requiring an externally mounted antenna
Important Compatibility Information
The FB-COMBO-LGX-3M provides one LTE antenna connection and one GPS antenna connection. It is intended for devices fitted with a single cellular antenna port.
If your router or modem has 2 × LTE antenna ports and 1 × GPS port, we recommend using the appropriate 2-LTE + 1-GPS combination antenna.
Using both LTE antenna connections allows compatible devices to employ antenna diversity or 2×2 MIMO. This can improve connection stability, cellular performance and data throughput. Leaving the secondary LTE port disconnected may prevent the device from delivering its optimum performance.
Always check the number and type of antenna connections fitted to your equipment before ordering.
Typical Applications
- Victron Energy GX monitoring installations
- Solar and battery storage systems
- Remote power monitoring
- Industrial routers and cellular gateways
- Vehicle and motorhome installations
- Marine communications systems
- Equipment cabinets and plant rooms
- Off-grid telemetry and monitoring
- Tracking and location-aware equipment
Technical Specification
| Specification | Details |
|---|---|
| Product code | FB-COMBO-LGX-3M |
| Antenna type | Combined cellular and GPS antenna |
| Cellular elements | 1 × LTE |
| Navigation elements | 1 × GPS/GNSS |
| Primary application | Victron GX LTE modem |
| Other compatibility | Devices with 1 × LTE and 1 × GPS antenna port |
| Mounting method | Stand-off wall or fixed-surface mounting |
| Mounting bracket | Included |
| Polarisation | Vertical |
| Gain | Up to 5 dBi |
| VSWR | 1.2:1 at tuned frequency |
| Cable type | LBC100 |
| Cable length | 2 × 3 metres |
| Cellular connector | SMA male |
| GPS connector | SMA male |
| Power handling | 40 watts |
| Impedance | 50 ohms |
| Operating temperature | −40°C to +85°C |
| Ingress protection | IP67 |
Package Contents
- 1 × Outdoor LTE and GPS combination antenna
- 1 × Stand-off wall-mounting bracket
- 2 × Permanently attached 3-metre LBC100 antenna cables
- 2 × SMA male connectors
