Milesight
Showing all 3 results
- 5G Routers, Milesight, Milesight 5G Routers, Office 5G Router, Office 5G Router, Outdoor 5G Router
Milesight UF51-504AE Indoor and Outdoor (IP67) 5G Router CPE
5G Routers, Milesight, Milesight 5G Routers, Office 5G Router, Office 5G Router, Outdoor 5G RouterMilesight UF51-504AE Indoor and Outdoor (IP67) 5G Router CPE
The Milesight UF51-504AE is a 5G Sub-6 GHz outdoor CPE with an IP67-rated polycarbonate and cast aluminium enclosure, built for industrial and public-sector deployments where weatherproof, permanent outdoor installation is required. A quad-core ARM Cortex-A55 processor, built-in GPS, RS485 serial, galvanically isolated DI/DO, and 802.3at PoE PD input make it a complete remote monitoring and connectivity node in a single unit.
Milesight UF51 Key Features:
• 5G NR SA/NSA Sub-6 GHz – bands N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
• Downlink up to 4.67 Gbps with 5G dual carrier aggregation (2CC CA)
• Quad-core ARM Cortex-A55, 2 GHz / 1 GB LPDDR4x RAM / 1 GB NAND Flash
• 1 x 10/100/1000/2500 Mbps WAN/LAN port + 1 x 10/100/1000 Mbps LAN port
• 802.3at PoE PD on WAN port – single cable power and data
• Built-in GPS/GLONASS/Beidou/Galileo/QZSS with 2 m CEP accuracy
• 1 x RS485 serial port (RS232 hardware optional) with Modbus TCP/RTU support
• 1 x DI + 1 x DO with galvanic isolation
• VPN support: OpenVPN, IPsec, L2TP, PPTP
• Node-RED edge application runtime built in
• IP67 rated – pole, wall, desktop, or bottom screw mounting
• Available with Optional WiFi6 (UF51-504AE-W4)Milesight UF51 Datasheet (pdf)
SKU: UF51-504AE - 5G Routers, Milesight, Milesight 5G Routers

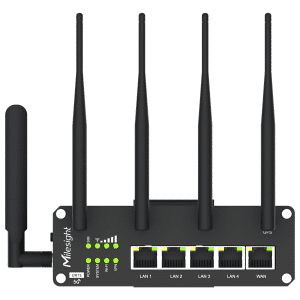

Milesight UR75 Industrial 5G PoE Router with Wi-Fi 6 and GPS (POE Version UR75-504AE-P-W2)
5G Routers, Milesight, Milesight 5G RoutersMilesight UR75 Industrial 5G PoE Router with Wi-Fi 6 and GPS (POE Version UR75-504AE-P-W2)
The Milesight UR75-504AE-P-W2 is an industrial 5G router from the Ultra Series with 4-port 802.3 af/at PoE PSE, built for deployments where the router must also power IP cameras, wireless access points, or other PoE-compatible devices over the LAN ports. It combines 5G Sub-6 GHz connectivity, quad-core processing, Wi-Fi 6, integrated GPS, and RS232/RS485 serial ports in a compact IP30 metal enclosure rated to -40°C. A 48V DC power adapter is included.
UR75-504AE-P-W2 Key Features:
• 5G Sub-6 GHz NSA/SA with dual carrier aggregation – up to 4.67 Gbps download
• 4G LTE and WCDMA fallback with automatic dual SIM failover
• Dual Mini SIM-2FF slots (1.8V/3V)
• Quad-core ARM Cortex-A55 2 GHz CPU, 1 GB LPDDR4x RAM, 1 GB NAND Flash
• Wi-Fi 6 dual-band: 2.4 GHz 600 Mbps + 5 GHz 1200 Mbps (2×2 MIMO per band)
• 5 x Gigabit Ethernet: 1 x WAN + 4 x LAN with 802.3 af/at PoE PSE (30W per port, 60W total)
• RS232 + RS485 serial ports with Modbus TCP/RTU gateway support
• GPS/GLONASS/BDS/Galileo/QZSS positioning (2m CEP accuracy)
• 1 x DI + 1 x DO (galvanic isolation) and M.2 NVMe SSD expansion slot
• Node-RED, Milesight DeviceHub remote management, MilesightVPN
• -40°C to +70°C operating range, IP30 metal housing, DIN rail mountable
• 48V power adapter included, 3-year manufacturer warrantyIf you do not require POE then please view the Milesight UR75-504AE-W2
SKU: UR75-504AE-P-W2 - 5G Routers, Milesight, Milesight 5G Routers
Milesight UR75 Industrial 5G Router with Wi-Fi 6 and GPS
The Milesight UR75-504AE-W2 is an industrial-grade 5G router from the Ultra Series, built for M2M and IoT deployments where high throughput, serial connectivity, and environmental resilience are all required. It pairs a quad-core ARM Cortex-A55 processor with global 5G Sub-6 GHz support, dual SIM failover, Wi-Fi 6, integrated multi-constellation GNSS, and RS232/RS485 serial ports in a compact IP30 metal enclosure rated to -40°C.
UR75-504AE-W2 Key Features:
• 5G Sub-6 GHz NSA/SA with dual carrier aggregation – up to 4.67 Gbps download
• 4G LTE and WCDMA fallback with automatic dual SIM failover
• Dual Mini SIM-2FF slots (1.8V/3V)
• Quad-core ARM Cortex-A55 2 GHz CPU, 1 GB LPDDR4x RAM, 1 GB NAND Flash
• Wi-Fi 6 dual-band: 2.4 GHz 600 Mbps + 5 GHz 1200 Mbps (2×2 MIMO per band)
• 5 x Gigabit Ethernet: 1 x WAN + 4 x LAN
• RS232 + RS485 serial ports with Modbus TCP/RTU gateway support
• GPS/GLONASS/BDS/Galileo/QZSS positioning (2m CEP accuracy)
• 1 x DI + 1 x DO (galvanic isolation) and M.2 NVMe SSD expansion slot
• Node-RED, Milesight DeviceHub remote management, MilesightVPN
• -40°C to +70°C operating range, IP30 metal housing, DIN rail mountable
• 3-year manufacturer warrantyIf you need a 5G Router with POE then please view the Milesight UR75-504AE-P-W2
SKU: UR75-504AE-W2
