Teltonika SWM282 PoE+ Managed Switch (24 x POE+ Ports)
The Teltonika SWM282 is a high-capacity, cloud-enabled managed switch with 24 PoE+ Gigabit Ethernet ports and 4 SFP uplinks. With a total PoE power budget of 300 W, advanced L2+ and L3 features, and full industrial protocol support, it’s the perfect choice for enterprise, CCTV, and industrial networks that need scalable power and performance.
- 24 Gigabit ports with 4 SFP uplinks for high-performance networking
- 24 PoE+ ports delivering up to 30 W per port, 300 W total power budget
- Advanced L2+ and L3 features including VLAN, QoS, and static/dynamic routing
- Industrial protocol support (Profinet, EtherNet/IP, MRP, SNMP)
- RMS cloud management for remote monitoring, updates, and configuration
£221.00 Excl VAT

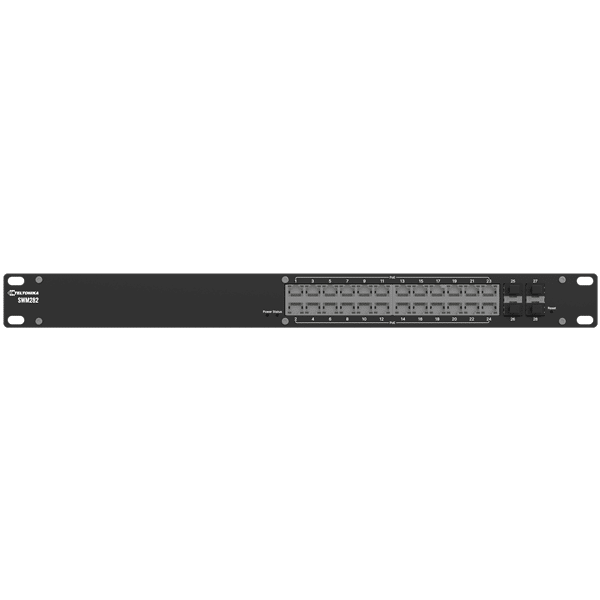

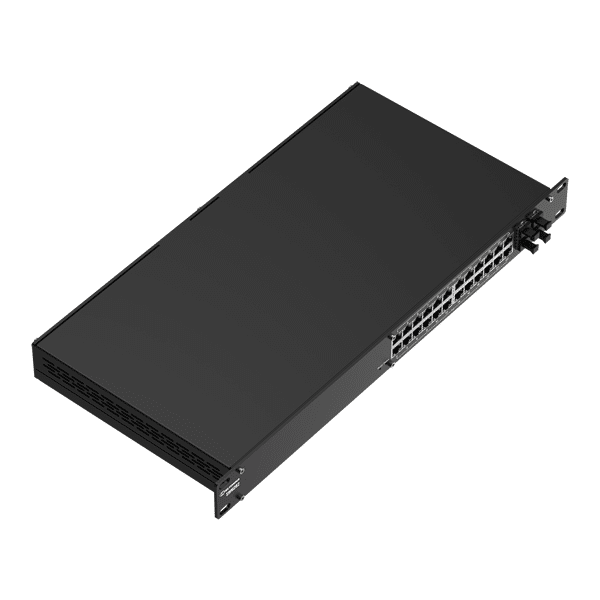

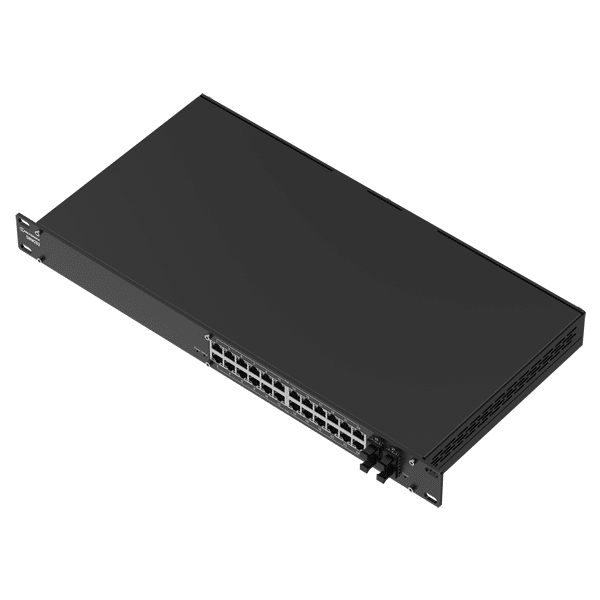

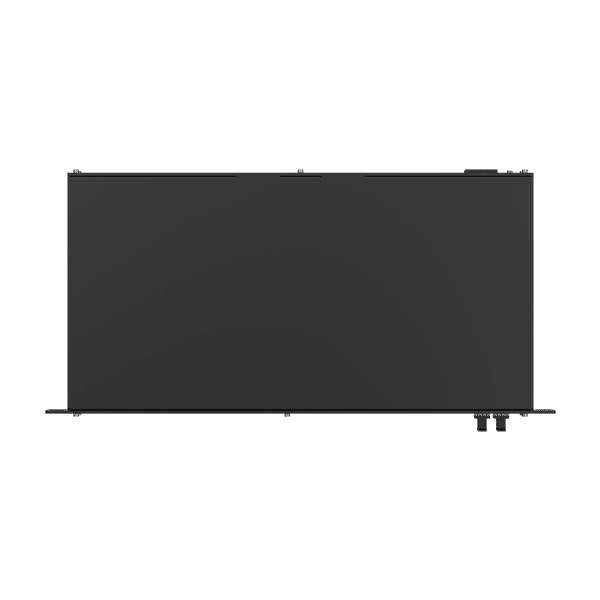

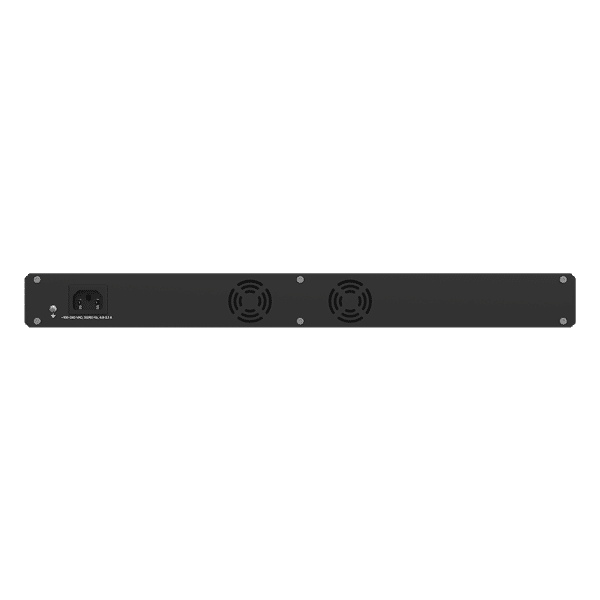

Teltonika Networks SWM282
24-Port PoE+ L2+ Managed Switch with 4 SFP Uplinks (300 W PoE Budget)
The Teltonika SWM282 is the flagship of the SWM28 series — a 24-port managed Gigabit switch with full PoE+ capability across all ports. Designed for enterprise, industrial, and large-scale IoT networks, it provides power and data on every port, reducing cabling and simplifying deployment.
With a 56 Gbps non-blocking switching capacity and 83.3 Mpps forwarding rate, the SWM282 is built to handle heavy traffic loads. Its 24 PoE+ ports (IEEE 802.3af/at) deliver up to 30 W per port, with a 300 W total budget, making it ideal for powering IP cameras, access points, VoIP phones, and IoT gateways.
The SWM282 also supports advanced L2+ and L3 features including VLAN, QoS, DHCP, static IPv4/IPv6 routing, and dynamic routing protocols (BGP, OSPFv2, RIP, EIGRP). On the industrial side, it integrates seamlessly with Profinet (optional), EtherNet/IP, MRP, SNMP v2/v3, and LLDP, making it a strong choice for IIoT and automation.
Fully compatible with Teltonika RMS (Remote Management System), the SWM282 can be configured, monitored, and updated remotely, giving administrators centralised control across multiple sites.
Key Features
- 24 × Gigabit Ethernet ports, all PoE+ enabled
- 4 × SFP uplinks for fibre connectivity
- PoE+ power delivery: up to 30 W per port, 300 W total budget
- 56 Gbps switching capacity, 83.3 Mpps forwarding rate
- Advanced management: VLANs, QoS, static & dynamic routing
- Industrial protocols: Profinet Class B (optional), EtherNet/IP, MRP, LLDP, SNMP v2/v3
- Security: 802.1x, RADIUS, TACACS+, VLAN isolation, MAC filtering
- Diagnostics: cable test, ping, traceroute, nslookup, PoE reboot
- RMS cloud management for remote monitoring and updates
- Rugged 1U rackmount aluminium housing (IP30)
Technical Specifications
- Switching capacity: 56 Gbps
- Forwarding rate: 83.3 Mpps
- Packet buffer: 512 KB
- MAC address table: 8K entries
- Jumbo frame support: 10,000 bytes
- CPU: Realtek 500 MHz, 128 MB DDR3 RAM, 16 MB flash
- Power input: 100–240 VAC (C14 connector)
- Power consumption: 9 W idle / 330 W max (300 W PoE)
- Casing: Anodised aluminium (IP30)
- Dimensions: 483 × 44 × 234 mm (1U rackmount)
- Weight: 2.29 kg
- Certifications: CE, UKCA, CB, RCM, FCC, IC
Applications
The SWM282 is ideal for:
- CCTV & surveillance networks – power and data for up to 24 cameras
- Enterprise Wi-Fi – powering multiple access points across a site
- VoIP & smart office systems – phones, APs, and endpoints all powered centrally
- Smart cities & IoT deployments – sensors, gateways, and controllers powered via PoE+
- Industrial automation – full Profinet and EtherNet/IP compatibility
✅ Available now at 3G Router Store. Combine the SWM282 with Teltonika RUT routers and Teltonika RMS for a complete, cloud-enabled connectivity solution.
Specification Table – Teltonika Networks SWM282
| Category | Specification |
|---|---|
| Hardware | CPU: Realtek single-core, 500 MHz (MIPS-4KEc) RAM: 128 MB DDR3 Flash Storage: 16 MB serial flash Casing: Anodised aluminium housing and panels Dimensions: 483 × 44 × 234 mm (1U rackmount) Weight: 2.29 kg Mounting: Rack mounting kit included LEDs: 1 × Power, 48 × Ethernet, 1 × Status, 4 × SFP Reset: Software reset button Grounding: 1 × Grounding screw |
| Ethernet & Ports | 24 × Gigabit Ethernet ports (10/100/1000 Mbps) 4 × Gigabit SFP uplinks All 24 ports support PoE+ (IEEE 802.3af/at) Up to 30 W per port, 300 W total PoE budget |
| Performance | Switching capacity: 56 Gbps Forwarding rate: 83.3 Mpps Packet buffer: 512 KB MAC address table: 8K entries Jumbo frame support: 10,000 bytes |
| Network & Protocols | Layer 2 features: VLAN (802.1Q), STP/RSTP, Loop protection Layer 3 features: Static IPv4/IPv6 routing, DHCPv6 client, static IPv6 Routing: BGP, OSPFv2, RIP v1/v2, EIGRP QoS: Port priority, DSCP, 802.1p, TOS Scheduling: SP / WFQ / WRR DHCP: Server, client, static leases (MAC with wildcards) Industrial protocols: Profinet Class B (optional), EtherNet/IP, MRP Management: SNMP v2/v3, LLDP, 802.1x, Teltonika Web API (beta) Diagnostics: Cable test, ping, traceroute, nslookup, PoE reboot |
| Security | Authentication: PAM (preshared key), RADIUS, TACACS+ Access control: 802.1x (client/server), MAC filtering VLAN isolation: Port-based separation |
| Software & Management | Operating system: TSWOS (OpenWrt-based Linux) Interfaces: Web UI, CLI, Teltonika RMS, API Firmware: Local update, FOTA, RMS remote update Configuration: Profiles, backup/restore, RMS bulk management Developer tools: SDK, Lua, Busybox shell, C/C++ |
| Power | Connector: IEC C14 Input voltage: 100–240 VAC, 50/60 Hz Power consumption: Idle 9 W / Max 330 W / PoE max 300 W |
| Environmental | Operating temperature: 0 °C to +50 °C Operating humidity: 10–90% non-condensing Ingress protection: IP30 |
| Certifications | CE, UKCA, CB, RCM, FCC, IC |
| Package Contents | 1 × Teltonika SWM282 Managed Switch 1 × Rack mounting kit 1 × Quick Start Guide Standard packaging |
Package Contents
- 1 × Teltonika SWM282 L2+ Managed Switch
- 1 × Quick Start Guide (QSG)
- 1 × Packaging box
(Standard package contents may differ based on order codes.)
Ordering Information
| Hardware Version | Description | Standard Order Code / Package |
|---|---|---|
| **SWM282 ***0 | Profinet disabled by default | SWM282000000 / Standard package |
| **SWM282 ***1 | Profinet Class B conformance | SWM282000001 / Standard package |
Classification Codes
-
HS Code: 851762
-
HTS: 8517.62.00
