PR327NP0 DIN Rail PSU 120W

Teltonika PR327NP0 DIN RAIL POWER SUPPLY, 120 W, 48 V

Availability:

Available on back-order

PR327NP0

The Teltonika 120W DIN rail power supply provides a reliable 48V DC output for industrial networking, automation and control-panel installations. It accepts a universal 100–240V AC input and delivers up to 2.5A, with screw-terminal connections, short-circuit protection and a wide operating temperature range.

£69.00 Excl VAT

Available on back-order

CALL US to discuss volume pricing 0300 124 6181
Do you need a Fixed IP SIM Card / IoT SIM?

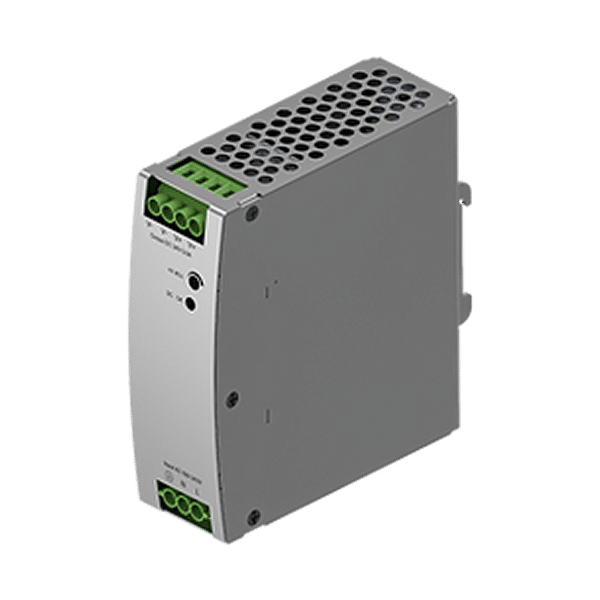

Teltonika 120W 48V DIN Rail Power Supply

The Teltonika PR327NP0 is a 120W 48V DIN Rail Power Supply providing a stable and reliable DC power source for compatible industrial networking equipment, automation systems and control-panel installations.

It converts a standard 100–240V AC mains input into a regulated 48V DC output, supplying up to 2.5A and 120W. DIN rail mounting allows the power supply to be installed neatly inside industrial cabinets, communications enclosures and equipment racks.

Screw-terminal connections provide secure input and output wiring, while integrated short-circuit protection helps protect the power supply and connected equipment. A dielectric withstand rating of 4,242V DC between the primary and secondary circuits provides a high level of electrical isolation.

The power supply is designed to operate across a broad ambient temperature range and has an MTBF rating of 453,300 hours, making it suitable for long-term use in professionally installed industrial and communications systems.

Key Features

  • 120W maximum output power
  • 48V DC output at up to 2.5A
  • Universal 100–240V AC input
  • Designed for DIN rail installation
  • Secure screw-terminal input and output connections
  • Integrated short-circuit protection
  • 4,242V DC primary-to-secondary dielectric withstand rating
  • Operating ambient temperature range from -20°C to +70°C
  • Maximum ambient temperature of +50°C when operating at full load
  • MTBF rating of 453,300 hours
  • Compliant with applicable EN and BS EN safety and EMC standards

Technical Specification

SpecificationDetails
Maximum output power120W
Nominal input voltage100–240V AC
Absolute input voltage range90–264V AC
Nominal input frequency50/60Hz
Absolute input frequency range47–63Hz
Input current2.25A
Inrush current120A
Nominal output voltage48V DC
Output voltage range47–56V DC
Output current2.5A
Short-circuit protectionYes
Dielectric withstand test4,242V DC, primary to secondary
MTBF453,300 hours
Input connectionScrew terminal
Output connectionScrew terminal
Weight520g
Ambient operating temperature-20°C to +70°C
Maximum temperature at full load+50°C

Safety and EMC Certification

CategoryStandards
SafetyEN 62368-1:2014+A11:2017
BS EN 62368-1:2014+A11:2017
EMCEN 55032:2015/A1:2020
BS EN 55032:2015+A1:2020
EN 55035:2017/A11:2020
BS EN 55035:2017+A11:2020
EN IEC 61000-3-2:2019/A1:2021
BS EN IEC 61000-3-2:2019
EN 61000-3-3:2013/A2:2021
BS EN 61000-3-3:2013 AMD.1:2019

Temperature and Altitude Notice

The maximum ambient operating temperature at full load is +50°C. For installations operating above an altitude of 2,000 metres (6,500 feet), apply an ambient temperature derating of 3.5°C for every additional 1,000 metres.

Installation note: This is a mains-powered industrial power supply and should be installed inside a suitable enclosure by a competent person. Always confirm that the connected equipment accepts a 48V DC input and that its maximum current requirement does not exceed 2.5A.
