Panorama WMM49G-24-72-NJ – Directional 4G/5G Antenna

Availability:

Available on back-order

Panorama WMM49G-24-72-NJ Directional 4×4 MiMO Antenna

  • High gain directional antenna
  • 4×4 MiMo capability
  • Wide band 2.3-7.2GHz
  • Compact solution
  • Easy to install
  • High gain with wide aperture for easy installation
  • N-bulkheads allow for easy installation of low loss cable
  • Not supplied with cables

£169.00 Excl VAT

Available on back-order

CALL US to discuss volume pricing 0300 124 6181
Do you need a Fixed IP SIM Card / IoT SIM?

WMM49G-24-72-NJ 4×4 MiMo Directional Antenna

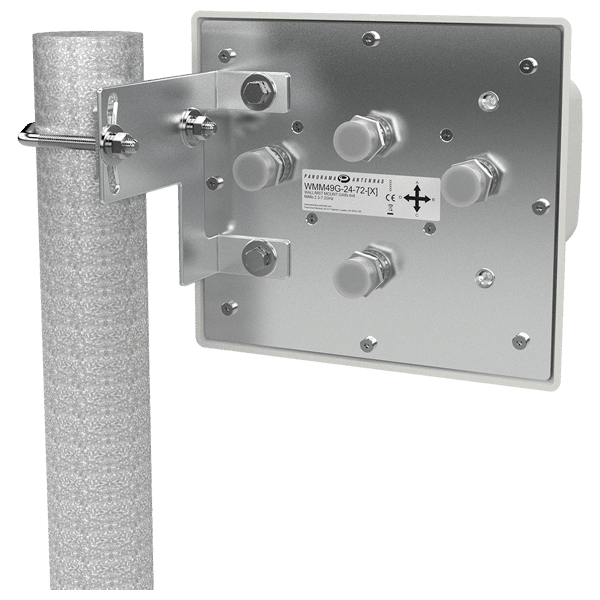

The WMM49G-24-72-NJ is a high directional gain 2×2, 3×3 or 4×4 MiMo antenna for WiFi, 5G and P-LTE networks. Incorporating two, three or four separately fed gain element assemblies in a single housing the WMM[X]9G-24-72-NJ is equipped to provide client-side MiMo support for modern networks. The weather-resistant housing is designed for rail or mast mounting. Supplied with fitted N female bulkhead connections for easy installation, the product can be fitted with a range of extension cables. The WMM[X]9G-24-72-NJ is a cost-effective value-added product for providing MiMo WiFi, 5G or P-LTE coverage to a room, platform or other areas.

  • High gain directional antenna
  • 4×4 MiMo capability
  • Wide band 2.3-7.2GHz
  • Compact solution
  • Easy to install
  • High gain with wide aperture for easy installation
  • N-bulkheads allow for easy installation of low loss cable

Supplied without cables – these can be ordered separately – for optimum performance we recommend the C240N-10SP-5GA 10m long pre-terminated CS240 cables, (N Male to SMA Male) – you will need 4 cables

Typical Applications

  • Directional coverage
  • Client and edge devices
  • 4G and 5G networks
  • Wide Band means it can also support WiFi networks however this would not be the obvious use for this antenna (plus ensure you ordered correct cable to suit the WiFi connection on your router)
SKU: WMM49G-24-72-NJ Categories: , , , Tags: , , , , Brand:
ELECTRICAL DATA
PatternDirectional
Max Input Power(W)20
Typical VSWR<2.5:1
Frequency Range | Gain2300 – 7125MHz |
Cellular LTE ElementsNo
WIFI Elements2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO
UHF ElementsNo
GPS DATA
Number of GPS ElementsNo
MECHANICAL DATA
ColourWhite
Length193 (mm) | 7.60 (in)
Width188 (mm) | 7.40 (in)
Height168 (mm) | 6.61 (in)
Operating Temperature-40°/ +80°C (-40.0°/ +176.0°F)
TERMINATION DATA
Connector (WIFI)N (f)
MOUNTING DATA
Mounting Type FixedMast; Rail
Mounting MethodsMast; Rail; Pole
APPROVALS DATA
IP RatingIK10; IP66
Material FlammabilityUL746C-F1, UL94-V0
TECHNOLOGY DATA
TechnologyWIFI MIMO; WIFI; 5G; CBRS; WIFI 6E
