DAP140
DAP140

Key features

  • Wi-Fi 4 access point for up to 50 devices
  • 2 x 10/100 Ethernet ports
  • 9-30 V DC or passive PoE, -40 to 75 °C, IP30
Full specifications

Downloads

Teltonika Diamond Distributor

Selling and supporting Teltonika since 2007, starting with the RUT100. Pre-sales advice, configuration options and UK technical support for every Teltonika router we sell.

Explore the Teltonika range

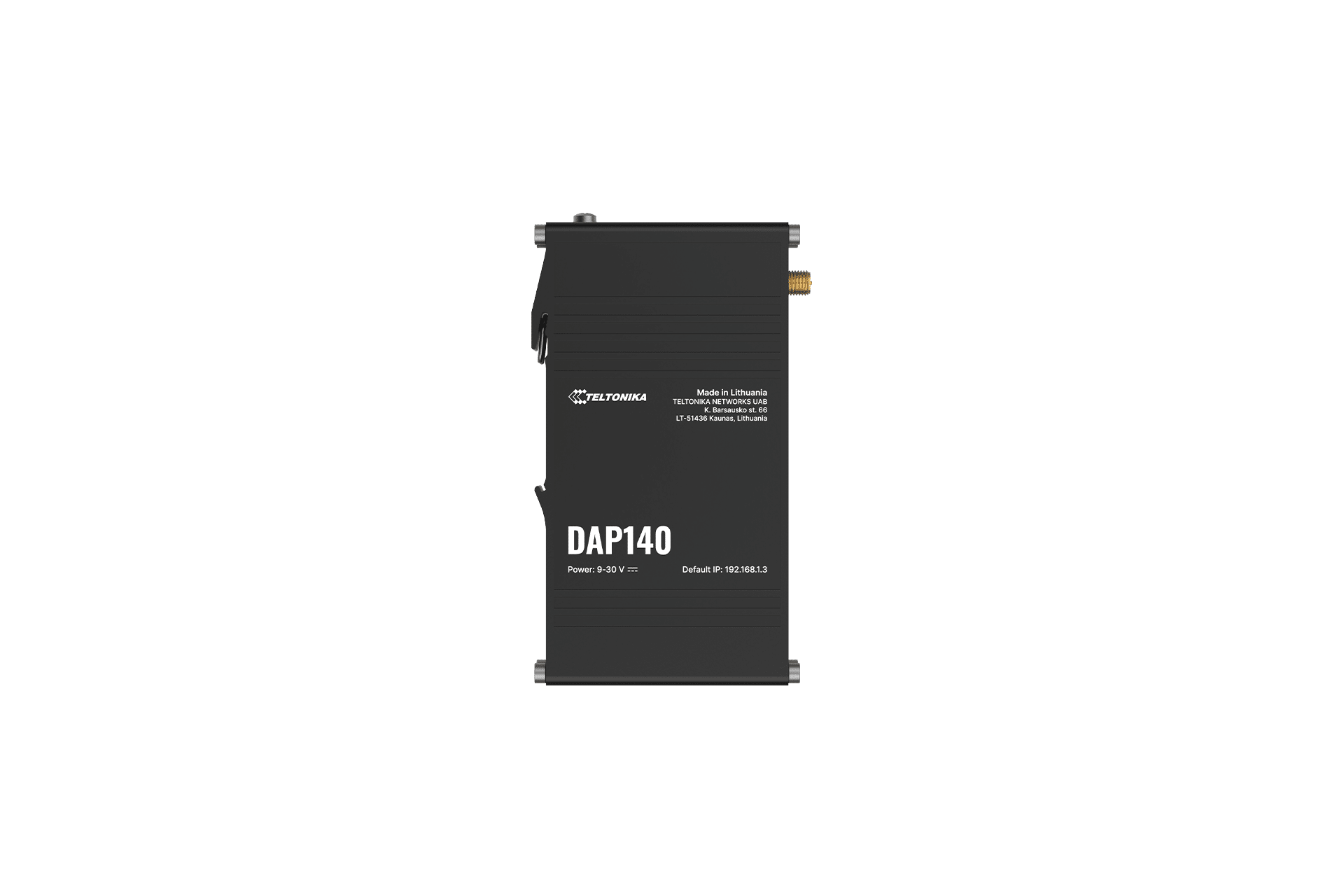

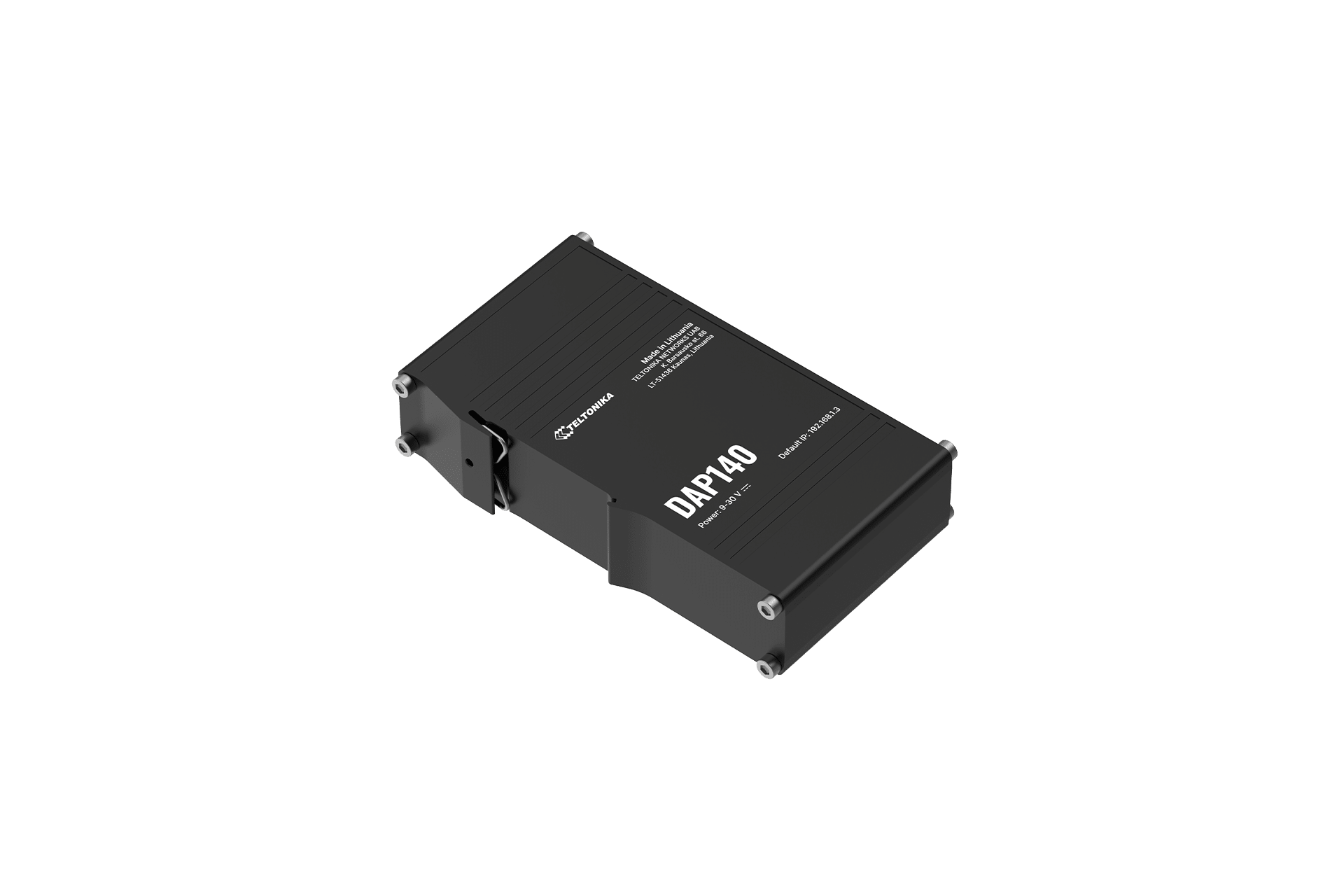

Teltonika DAP140 - Industrial Wi-Fi 4 Access Point (DAP140000000)

Teltonika Manufacturer code DAP140000000 SKU TELTONIKA-DAP140000000-N

The Teltonika DAP140 is an industrial Wi-Fi access point with Wi-Fi 4 for up to 50 devices and two Ethernet ports. It is rated from -40 to 75 °C and housed in an IP30 aluminium case.

£53.50 ex VAT£64.20 inc VAT

Trade customer? Log in to see your trade price

In stock. Order by 2pm on a working day for next working day delivery to most mainland UK addresses

Buying regularly for a business? Apply for a business account with a named account manager.

Where the DAP140 fits

  • Adding Wi-Fi to offices, shops and warehouses
  • Extending Wi-Fi from a Teltonika router across a site
  • Guest and staff networks managed through RMS

Why choose the DAP140

  • Ping reboot and connection monitoring keep it online without a site visit
  • Teltonika RMS for remote management, updates and access across many devices
  • External antenna connectors (1 x RP-SMA for Wi-Fi)
  • Anodised aluminium housing and panels case, IP30

Which version is this?

This is the DAP140 (N/A) (manufacturer code DAP140000000).

Questions

Can the DAP140 be powered over Ethernet?

Yes, by passive PoE (9 to 30 V DC). It is not compatible with 802.3af or 802.3at PoE switches, so use a passive PoE injector or the supplied power supply.

Can I fit external antennas?

Yes. It has 1 x RP-SMA for Wi-Fi, so the supplied antennas can be swapped for an outdoor or panel antenna where signal is weak. See our antennas for Teltonika routers.

How is it mounted?

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed). Compatible kits are listed under Compatible accessories.

Specifications

Wi-Fi
Wireless modeIEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
Wi-Fi usersUp to 50 simultaneous connections
Ethernet
LAN2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Ethernet2 x RJ45 ports, 10/100 Mbps
Power
Connector3-pos plugable terminal block
Input voltage range9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
PoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumptionIdle: < 1 W / Max: < 2 W
Hardware
CPUMediatek, 580 MHz, MIPS 24KEc
RAM128 MB, DDR2
FLASH storage16 MB serial NOR flash
Physical
Antennas1 x RP-SMA for Wi-Fi
Dimensions (W x H x D)113,10 x 25 x 68,6 mm
Weight142.3 g
Mounting optionsIntegrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Casing materialAnodised aluminium housing and panels
Environment
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30
This version
Manufacturer codeDAP140000000
RegionN/A

Specifications from Teltonika's published datasheet and product page.

In the box

  • Industrial Access point DAP140
  • 3-pin power connector
  • 1x Wi-Fi antenna (magnetic, RP-SMA male)
  • QSG (Quick Start Guide)
  • Standard package contents may differ based on standard order codes.

Compatible accessories

Accessories Teltonika lists as compatible with the DAP140 that we keep in stock. Ask us for any other Teltonika accessory code.

Power

Mounting

Antennas

Set-up and support

Need help planning a network? Tell us what you are connecting and we will recommend the right switch, access point or router and how to set it up.

Downloads

Teltonika DAP140 Datasheet first page
Teltonika DAP140 DatasheetPDF · 14 pages · 513 KB · v1.21Document details

Browse all datasheets and guides

Guides for this product

4G PoE Router: Power Over Ethernet and Cellular Connectivity ExplainedWhat is a 4G PoE router? A 4G PoE router combines two functions in a single…

Applications

Technology: Wi-Fi
