Panorama LG-IN2457 5-in-1 MIMO 4G/5G, WiFi and GPS Panel Antenna

Panorama LG-IN2457 5-in-1 MIMO 4G/5G, WiFi and GPS Combination Antenna

The Panorama LG-IN2457 is a 5-in-1 low profile combination antenna that combines 2×2 MIMO 4G/5G LTE, 2×2 MIMO dual-band WiFi, and an active GPS/GNSS receiver in a single sealed dome. It is supplied as a complete kit with five 5-metre cables, terminating in SMA and RP-SMA connectors. One installation point therefore replaces five separate antennas on a vehicle roof, panel, or equipment enclosure.

The LG-IN2457 uses the LGMDM-6-60-24-58 antenna body from the Panorama Great White low profile family. Cellular coverage runs from 617-960 MHz and 1710-6000 MHz, covering all UK and European 4G LTE bands and sub-6 GHz 5G NR. The GPS/GNSS module supports GPS, Glonass, Galileo, QZSS, and Compass with a 26 dB active LNA and advanced filtering to reduce interference from adjacent LTE bands. The sealed radome is rated IP69K and IK10, and both the radome and cables are manufactured from halogen-free flame retardant materials meeting UNECE 118.01 and EN45545-2.

Key Features

• 5-in-1 combination antenna – 2×2 MIMO 4G/5G LTE, 2×2 MIMO dual-band WiFi, and active GPS/GNSS in one dome
• Cellular: 617-960 MHz and 1710-6000 MHz – all UK and European LTE bands plus sub-6 GHz 5G NR
• Cellular gain: 5 dBi (617-960 MHz), 9 dBi (1710-3800 MHz), 10 dBi (4900-6000 MHz) – omni-directional
• WiFi: 2.4 GHz and 4.9-6.0 GHz dual-band – 2×2 MIMO
• GPS/GNSS: 1562-1612 MHz – supports GPS, Glonass, Galileo, QZSS and Compass; 26 dB active LNA with LTE B13/14 filtering
• Complete cable kit included – 5x 5-metre RG174 cables: 2x SMA male (cellular), 2x RP-SMA male (WiFi), 1x SMA male (GPS)
• Single hole panel mount – fits conductive and non-conductive surfaces; no ground plane required
• IP69K – fully sealed against water ingress and high-pressure wash
• IK10 – vandal resistant; rated for repeated 20-joule impacts
• Halogen-free flame retardant radome and cables – UNECE 118.01 and EN45545-2 compliant

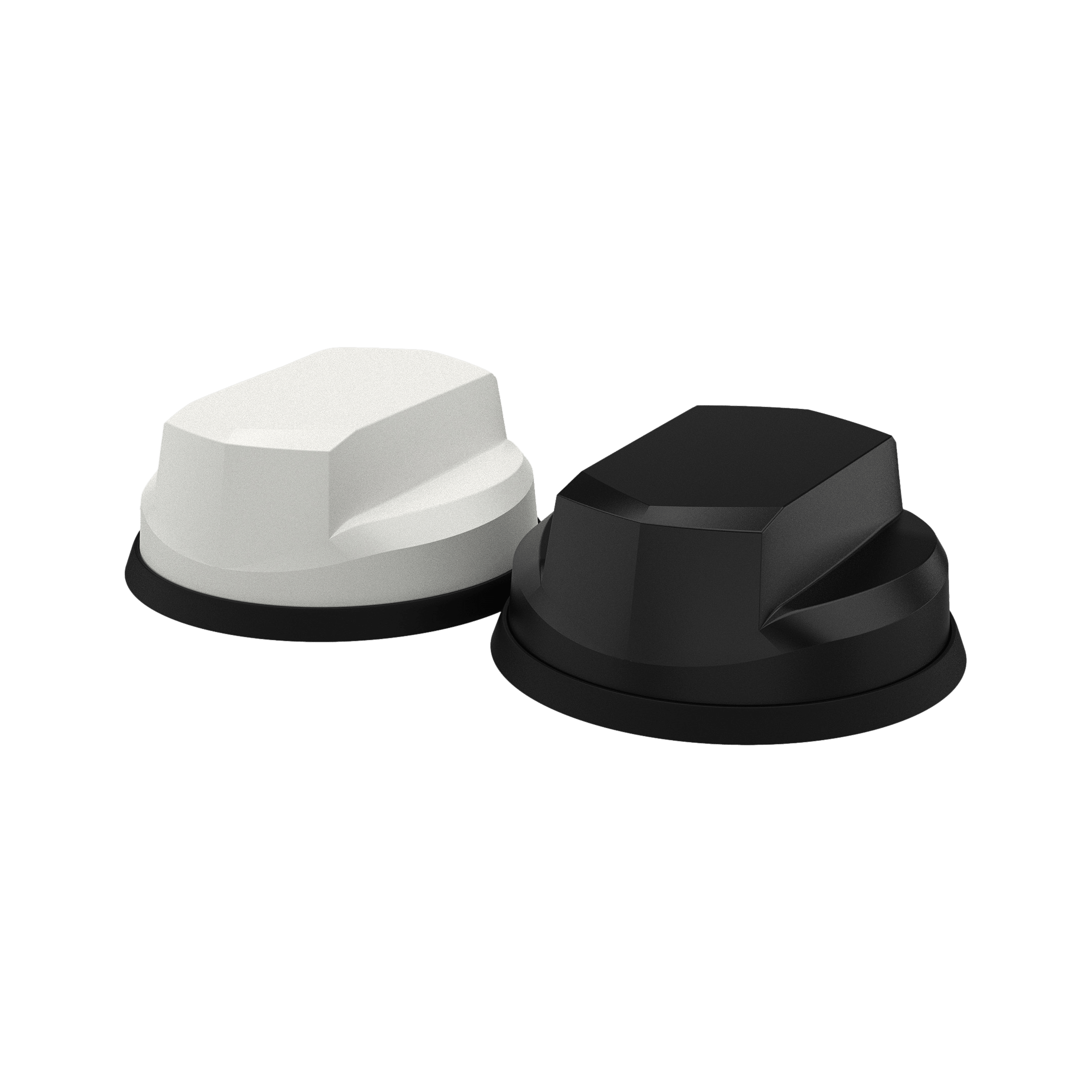

• Operating temperature -40°C to +85°C – available in black (LG-IN2457) or white (LG-IN2457-W)

Where the LG-IN2457 is Used

Connected Fleet Vehicles with WiFi and GPS

Fleet vehicles fitted with a cellular router, onboard WiFi hotspot, and GPS tracking system traditionally require three separate antenna installations. The LG-IN2457 consolidates all three functions into one mounting hole. This reduces installation time, cable runs, and potential leak points in the vehicle roof. Because it is ground plane independent, it performs consistently on steel roof panels and GRP or composite van bodies alike.

Public Safety and Emergency Services Vehicles

Police, ambulance, and fire vehicles require reliable cellular data, onboard WiFi for crew devices, and continuous GPS tracking. The LG-IN2457 covers all three in a single vandal-resistant dome rated for the rigours of daily emergency service use. The IP69K rating handles pressure washing during vehicle decontamination. In addition, IK10 certification provides protection against deliberate or accidental impact in operational environments.

Passenger Transport and Bus Connectivity

Buses and coaches running onboard passenger WiFi alongside fleet management GPS and cellular WAN need a compact multi-function antenna solution. The LG-IN2457 fits a single roof penetration and provides all three functions simultaneously. The 5-metre cables give sufficient reach from a roof mount to equipment bays inside the vehicle body without extension leads. Flame retardant cable compliance with EN45545-2 makes it suitable for all public transport applications.

Fixed Industrial Sites with WiFi and Tracking Requirements

Remote industrial sites, construction compounds, and temporary operations centres often need cellular WAN, local WiFi for site equipment, and GPS asset tracking from a single compact installation. The LG-IN2457 handles all three from one mounting point on a cabin roof, container lid, or equipment mast. Therefore, no additional antenna masts or secondary cable runs are required.

Vehicle-Mounted IoT and Telematics Systems

Telematics platforms combining cellular data, onboard diagnostics WiFi, and GPS position reporting are increasingly common in logistics and utility fleets. The LG-IN2457 provides the antenna infrastructure for all three in a single housing. The wide frequency range ensures compatibility with all UK mobile networks at LTE and 5G NR frequencies, while the dual-band WiFi covers both 2.4 GHz legacy devices and 5 GHz higher-throughput connections.

Frequently Asked Questions

What routers and devices is the LG-IN2457 compatible with?

The LG-IN2457 uses SMA male connectors on the two cellular cables and one GPS cable, and RP-SMA male connectors on the two WiFi cables. It is therefore compatible with any router with SMA female cellular antenna ports and RP-SMA female WiFi ports, which covers all Teltonika RUT, RUTX, RUTM, and RUTC series routers stocked at routerstore.com. Browse our 4G antennas range if you need alternative connector types.

Does the GPS element require a separate power supply?

No. The GPS/GNSS element is an active antenna with a built-in 26 dB LNA, but it draws power via the coaxial cable from the GPS receiver port on the router or device it connects to. Most current routers with a dedicated GPS port supply the necessary bias voltage through the SMA connector automatically. However, confirm your router supports active GPS antenna bias before ordering if GPS tracking is a primary requirement.

What is the difference between the LG-IN2457 and the LP-IN2455?

The LP-IN2455 is a 2-in-1 cellular-only antenna with 2×2 MIMO LTE and no WiFi or GPS. The LG-IN2457 is a 5-in-1 antenna adding 2×2 MIMO dual-band WiFi and an active GPS/GNSS receiver. Choose the LP-IN2455 if you need cellular MIMO only and your router handles WiFi internally. Choose the LG-IN2457 if you need to replace or supplement external WiFi and GPS antennas as well as cellular in a single installation.

Does the LG-IN2457 need a metallic ground plane?

No. The LG-IN2457 is ground plane independent and performs consistently on both conductive and non-conductive surfaces. This makes it suitable for GRP vehicle bodies, fibreglass roofs, composite equipment enclosures, and plastic panels, as well as standard steel vehicle roofs and metal cabinet lids.

What SIM card do I need for the router I pair this with?

The LG-IN2457 is an antenna only. For deployments where the router needs a fixed IP address for VPN tunnels or remote SCADA access, a fixed IP SIM card is the right choice. For vehicles or mobile deployments where coverage varies across networks and locations, a roaming SIM card provides automatic access to multiple UK networks on a single SIM.
